How Best to Make This Damaged Hype 4s to 3s (pics)
Old
  (#1)
Kcaz25
RC-Monster Titanium

Kcaz25's Avatar

Offline
Posts: 1,404
Join Date: Dec 2008
Location: Louisville, KY
How Best to Make This Damaged Hype 4s to 3s (pics) - 06.22.2010, 11:18 AM

Scary movie sound *Reeeek, reeeek, reeeek!* The guilty party:

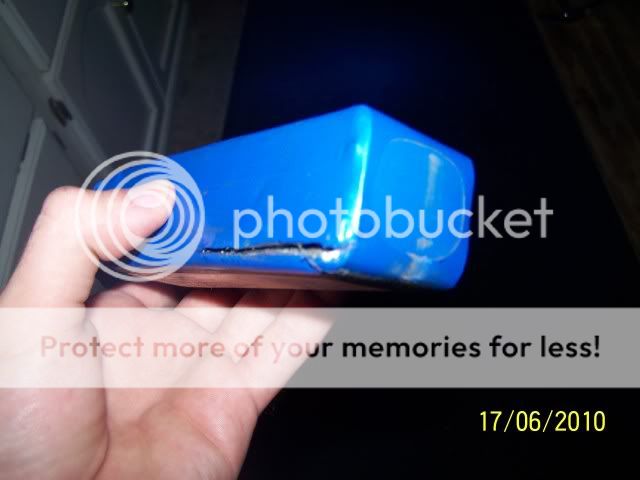

The victim:



The patient:










The question I'm asking is "how do I wire it?".

Help me make this surgery a success!
Thanks,
Zack

Last edited by Kcaz25; 06.22.2010 at 11:21 AM.

Reply With Quote
Old
  (#2)
brushlessboy16
Im not dark, Im over ripened! xD

brushlessboy16's Avatar

Offline
Posts: 5,607
Join Date: Sep 2007
Location: Westampton NJ
06.22.2010, 11:40 AM

Send it to me :) I do lipo repairs


Benjamin White
R/c Monster Team Driver
Jq the car, LST, Sportweks turmoil pro
Unconventional Techniques, Superior Results
  Send a message via Yahoo to brushlessboy16 Send a message via AIM to brushlessboy16 Send a message via MSN to brushlessboy16 Send a message via Skype™ to brushlessboy16
Reply With Quote
Old
  (#3)
bruce750i
RC-Monster Aluminum

bruce750i's Avatar

Offline
Posts: 971
Join Date: Feb 2008
06.22.2010, 11:52 AM

Your lucky it's an outside cell.

I would un-stick the bad cell first. use a warm to hot butter knife slowly cutting foam tape between the cells. once apart stick some paper between cell to keep them from sticking again.

Cut off dean wire lead(looks like the positive) at bad lipo. cut other tab of the bad cell, solder dean wire back on the positive side of the 3 cell pack.

This way your not fighting pools of solder cooling on you when your trying to unfold cell tabs.

The last time I did this the bad cell started getting hot after removing one of the tabs so I had to move quickly to finish the amputation.

Last edited by bruce750i; 06.22.2010 at 11:53 AM.

Reply With Quote
Old
  (#4)
mistercrash
Guelph, Canada, eh!

mistercrash's Avatar

Offline
Posts: 1,083
Join Date: Sep 2007
Location: Guelph, Ontario, Canada
06.22.2010, 11:52 AM

You will need a 3S balance tab.



No brain, no headaches.

Reply With Quote
Old
  (#5)
bruce750i
RC-Monster Aluminum

bruce750i's Avatar

Offline
Posts: 971
Join Date: Feb 2008
06.22.2010, 11:57 AM

Or it may be fine. Hows it balance? Any swelling, smoking, yellow discharge or shooting flames?

Reply With Quote
Old
  (#6)
Kcaz25
RC-Monster Titanium

Kcaz25's Avatar

Offline
Posts: 1,404
Join Date: Dec 2008
Location: Louisville, KY
06.22.2010, 12:14 PM

Thanx BB16 but I think I want to tackle this one.

Bruce: I should have clarified. I tried everything within my power to save the other cell. It was puffing, leaking, not balancing with the other cells which were all 4.22 it was staying at 3.75V.

Also. I already seperated them. You can see in almost every picture where it goes from 4 cells to 3 cells.

So Mrchrash, all your saying is that I need to move the negative wire as the pic shows and solder up a 3s balance tab... Wait let me look at the pcb one more time.

Reply With Quote
Old
  (#7)
Kcaz25
RC-Monster Titanium

Kcaz25's Avatar

Offline
Posts: 1,404
Join Date: Dec 2008
Location: Louisville, KY
06.22.2010, 12:23 PM

Here is what I'm looking at:


Guys, I'm not sure how this correspondes to Mrcrashes picture.

Reply With Quote
Old
  (#8)
bruce750i
RC-Monster Aluminum

bruce750i's Avatar

Offline
Posts: 971
Join Date: Feb 2008
06.22.2010, 12:45 PM

Sure, I was kidding it clearly is beyond saving.

Opps Kcaz25 I missed that. So it's your negative side then.

They are the same but yours looks like a four cell in that picture.

[IMG][/IMG]

Last edited by bruce750i; 06.22.2010 at 01:06 PM.

Reply With Quote
Old
  (#9)
Kcaz25
RC-Monster Titanium

Kcaz25's Avatar

Offline
Posts: 1,404
Join Date: Dec 2008
Location: Louisville, KY
06.22.2010, 01:14 PM

Cool and what about the balance tabs. I still have four of those negative wires.

Do I take off the one under your red X, balance wire that is?

Reply With Quote
Old
  (#10)
Bondonutz
Fat Kid Engineering

Bondonutz's Avatar

Offline
Posts: 3,634
Join Date: Jun 2009
Location: Hot as Hell West Central Coast Florida
06.22.2010, 02:33 PM

Volt meter will help with any guess work as to what wire goes where.


I retired from RC, now life is all about guns and long range shooting.

Reply With Quote
Old
  (#11)
mistercrash
Guelph, Canada, eh!

mistercrash's Avatar

Offline
Posts: 1,083
Join Date: Sep 2007
Location: Guelph, Ontario, Canada
06.22.2010, 03:31 PM



On the bottom is a 4S that you had. The blue cell is the one you took out. So you need to re arrange the wires like in the pic on top. You can either cut, grind away the part of the PCB that is not needed. And you can either use a new 3S balance tab or cut away the part of your 4S tab to transform it to a 3S tab. It won't be a real 3S tab but it will still hook up to your charger with no problems. I don't think I need to say this but I'll do it anyway, whatever you cut, grind or whatever, don't cut too deep, don't grind too far and most important, don't short anything. Don't do anything if you're in a hurry, you have to take your time and be aware of where your metal tools are and where you put them.

What I mentioned above is stuff I did myself to transform two sets of 4S packs to 3S ones.


No brain, no headaches.

Reply With Quote
Old
  (#12)
suicideneil
They've been naughty boys, havent they Mr. Flibble

suicideneil's Avatar

Offline
Posts: 7,490
Join Date: Feb 2007
Location: Devon, England
06.22.2010, 06:45 PM

You wont even need to change the balance plug or cut it, just remove that last black balance wire as per the picture. The charger will see a 3s pack when its plugged in- the plastic housing is just a plastic housing, it plays no part in the electrical side of things- if it were a cell in the middle of the pack, then you'd need to get a new balance plug for the pack.. its merely cosmetics in this instance
  Send a message via MSN to suicideneil
Reply With Quote
Old
  (#13)
swiftneed
RC-Monster Carbon Fiber

swiftneed's Avatar

Offline
Posts: 322
Join Date: Jul 2006
Location: Brooklyn NY
06.22.2010, 06:55 PM

Ok here is a question if you have a 6s and one cell is not charging and there was no puffing or smoke how can i tell which cell is the one that is damaged what inspection? A voltmeter?


  • RCM XT8 MMM NEU1521 1Y AKA TIRES HITEC 7955 TG 6S
  • MBX6T MMM CC 1518 HITEC 7955 BRAKE 5645 MG 6S LIPO

Reply With Quote
Old
  (#14)
nitrostarter
RC-Monster Brushless

nitrostarter's Avatar

Offline
Posts: 3,149
Join Date: Jul 2005
Location: Gramercy, LA
06.22.2010, 06:57 PM

You can test each cell individually with the voltmeter to see which voltage is lower than the others.


N. Rustler conversion
  Send a message via AIM to nitrostarter
Reply With Quote
Old
  (#15)
swiftneed
RC-Monster Carbon Fiber

swiftneed's Avatar

Offline
Posts: 322
Join Date: Jul 2006
Location: Brooklyn NY
06.22.2010, 07:04 PM

OK I guess simple enough each wire like testing fuses


  • RCM XT8 MMM NEU1521 1Y AKA TIRES HITEC 7955 TG 6S
  • MBX6T MMM CC 1518 HITEC 7955 BRAKE 5645 MG 6S LIPO

Reply With Quote
